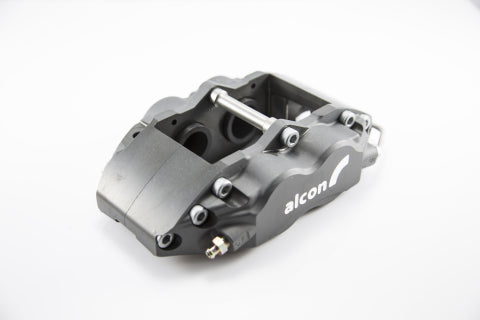

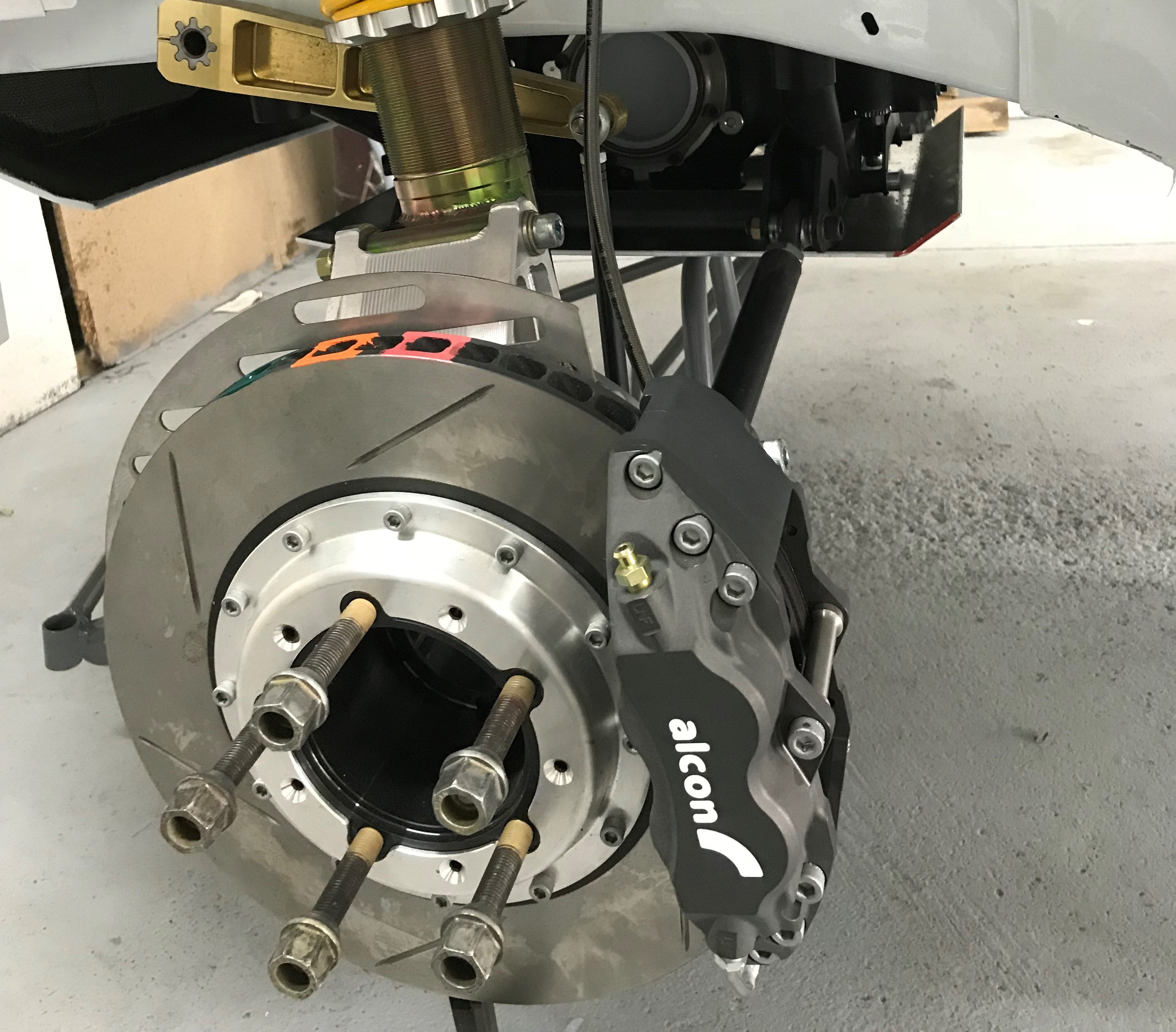

Alcon H-Type Motorsport caliper.
Applications
Rally Front or Rear, Single Seater, Saloon Car Rear, Hill Climb.
Key features and benefits
• Radial mount for maximum rigidity and firm,
consistent pedal.
• Aluminium pistons as standard, stainless steel pistons
available as an option to reduce heat transfer to brake fluid.
• 2Kg Anti-knock back springs.
• Remove pad retainer bolt and sleeve to change pads.
• Stainless steel fluid transfer pipe.
Specifications
• Disc diameter range: ø250 - 304mm.
• Disc thickness range: 25.4 - 28mm.
• Fluid inlet 3/8-24 UNF (-3) male.
• Dry weight 1.9kg excluding pads.

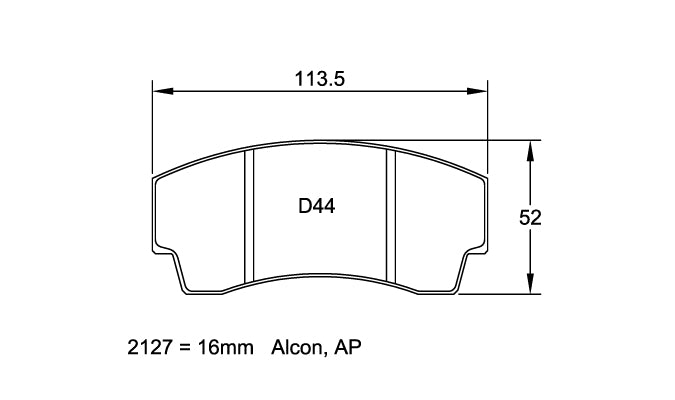

• Pad reference: Ferodo FRP219, Pagid U2127 area 80cm² per caliper, 16mm thick, 113.5mm long.
